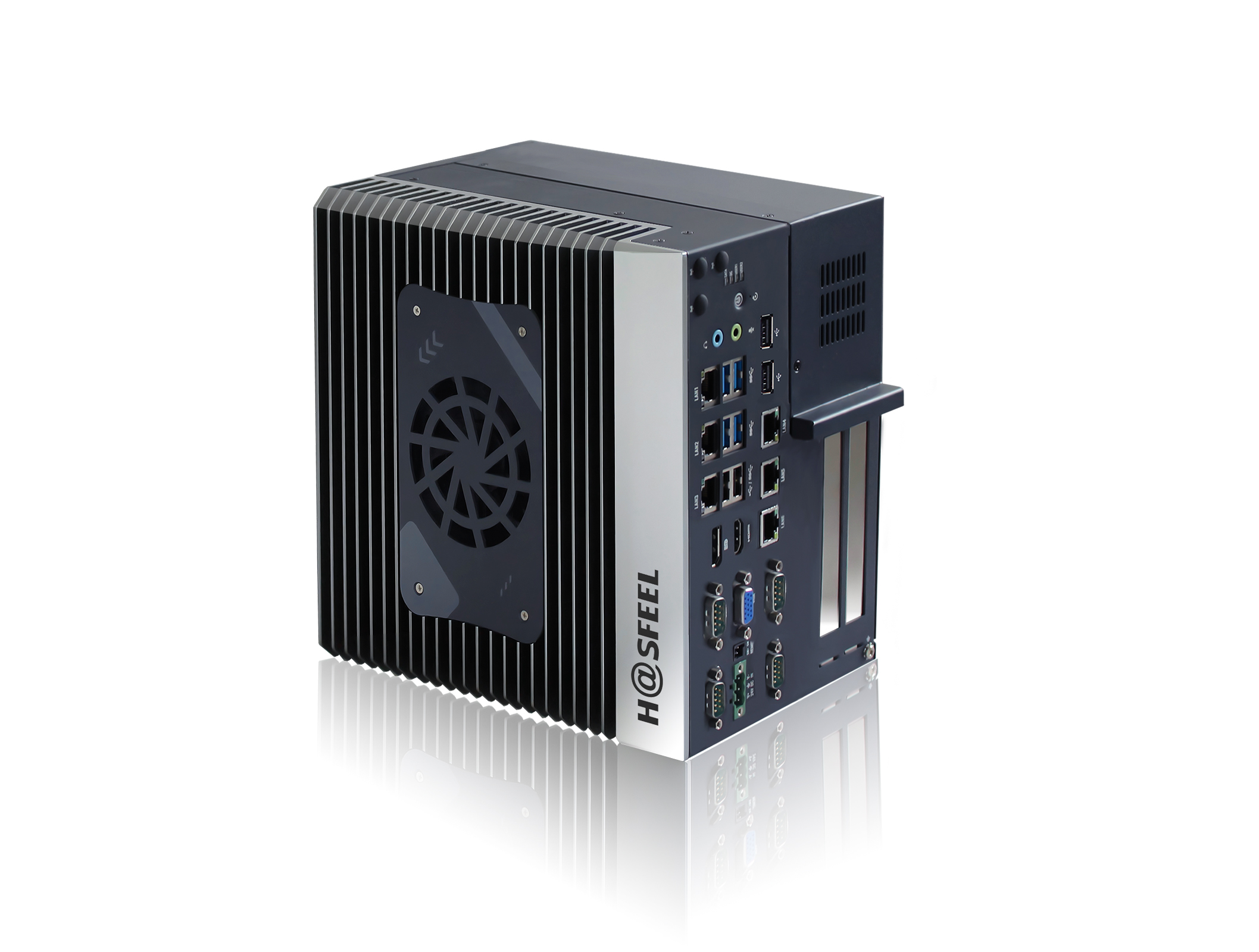

海思12-14代标压工控机6网4串PCIEX16/PCIEX4

• Intel 12-14th generation Core? i3/ i5/i7 Series CPU
• H610/H670/Q670 Chipset
• Dual channel DDR5 up to 128GB
• 3*Displays: DP, HDMl and VGA
• 6*GbE LAN (5 x Intel i210,1 xIntel i219)
• 1*RS-232/422/485,2 RS-232/485,1 RS-232
• 4*USB3.2,4*USB2.0(H610)or6*USB3.2,2*USB2.0(H670/Q670)
• 1*PCle 5.0 x16, 1*PCle 4.0 x4(x2 signal)
• or 1*PCl slotSupport 4G/5G, Wi-Fi module expansion
• DC 24V
• 220 x 226 x 136 mm (L x W x H)
• support Wall-mountingModular and cable-free design
• CE/FCC Class B, ESD 8KV/15KV
• Windows 10/11 and Linux multiple version OS
•
